| First floor | 250 |
| Second floor | 1206 |
| Total heated | 1456 |
| Garage | 968 |
| Width | 36' 0" |
| Depth | 35' 0" |
| Main level | 9' 0" |
| 2nd level | 9' 0" |
| Stories | 2 |
| Bedroom | 2 |
| Bathrooms | 2 |
| Garage spaces | 3 |
The Jericho is a versatile traditional-style carriage house plan that seamlessly blends charm, function, and flexibility. Designed to serve as a standalone small home, guest house, or accessory dwelling unit (ADU), this thoughtfully crafted plan offers two levels of comfortable living above a spacious three-car garage.

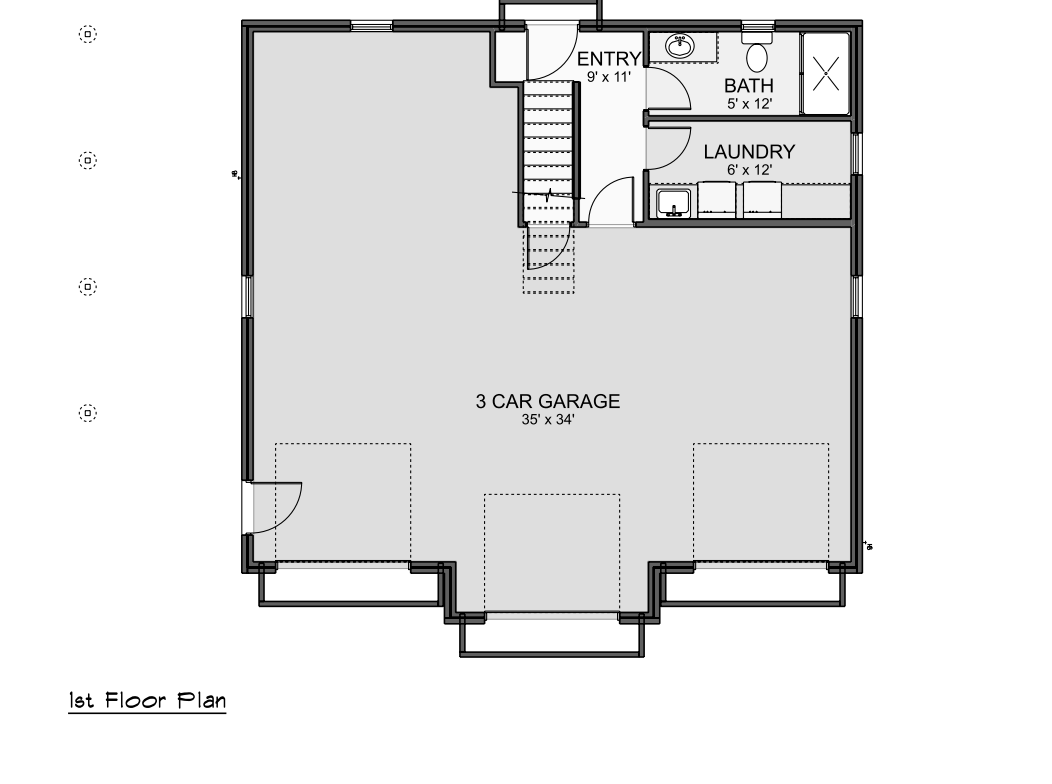

On the main level, the Jericho features a generous 3-car garage, a convenient laundry area, a full bathroom, and an interior staircase leading to the living space above.

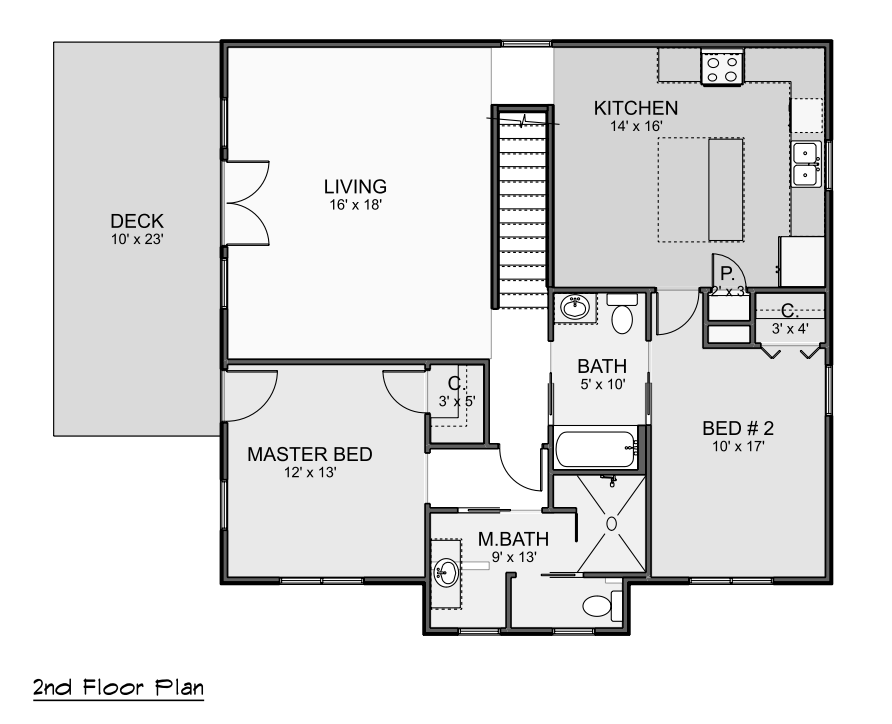

Upstairs, the second floor opens into a bright and open living area, where a well-appointed kitchen with an island and walk-in pantry flows effortlessly into the living room. Double doors extend the living space to a private exterior deck, perfect for relaxing or entertaining.
This level also includes a secondary bedroom and a pass-through full bathroom accessible from both the living area and bedroom. At the rear of the home, the primary suite offers a peaceful retreat, complete with access to a private balcony, a walk-in closet, and a full ensuite bathroom featuring a walk-in shower, private toilet, and single-sink vanity.
Whether you're looking for a garage apartment, guest quarters, or a cozy full-time residence, the Jericho house plan delivers timeless design, modern convenience, and adaptable living—all in a compact footprint.
| Architectural Styles | Southern, Craftsman, Traditional |
| Structure type | Garage and workshop, Garage w/ living space |
| Bedroom Features | Upstairs bedrooms, Upstairs master |
| Kitchen Features | Kitchen island |
| Additional Room Features | |
| Garage Features | Front entry |
| Outdoor spaces | Loft balcony, Covered front porch |
| Lot characteristics | Suited for corner lot, Suited for view lot, Suited for narrow lot |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
