| First floor | 1981 |
| Total heated | 1981 |
| Garage | 900 |
| Width | 77' 0" |
| Depth | 32' 0" |
| Height | 8' 0" |
| Main roof pitch | 12/7 |
| Main level | 8' 0" |
| 2nd level | 0' 1" |
| living room | 12' 0" |
| Stories | 1 |
| Bedroom | 3 |
| Bathrooms | 2 |
| Garage spaces | 3 |
This house plan was designed between me and my wife it took us 5 years of going back and forth of what we wanted and how to set it up to be functional with kids and when they move out. we have been in this house for 8 years now and love every minute of it. the added feature that is not on the print is the covered patio is also basement storage, so it a nice added protection from bad weather like tornados.
| Architectural Styles | Ranch, Craftsman, Shingle |
| Structure type | Single family home |
| Bedroom Features | Main floor master, Walk in closet |
| Kitchen Features | Country kitchen |
| Additional Room Features | Mud room, Great/Living room, Main floor laundry |
| Garage Features | Front entry, Oversized |
| Outdoor spaces | Covered rear porch |
| Lot characteristics | Suited for view lot, Zero lot lines |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.

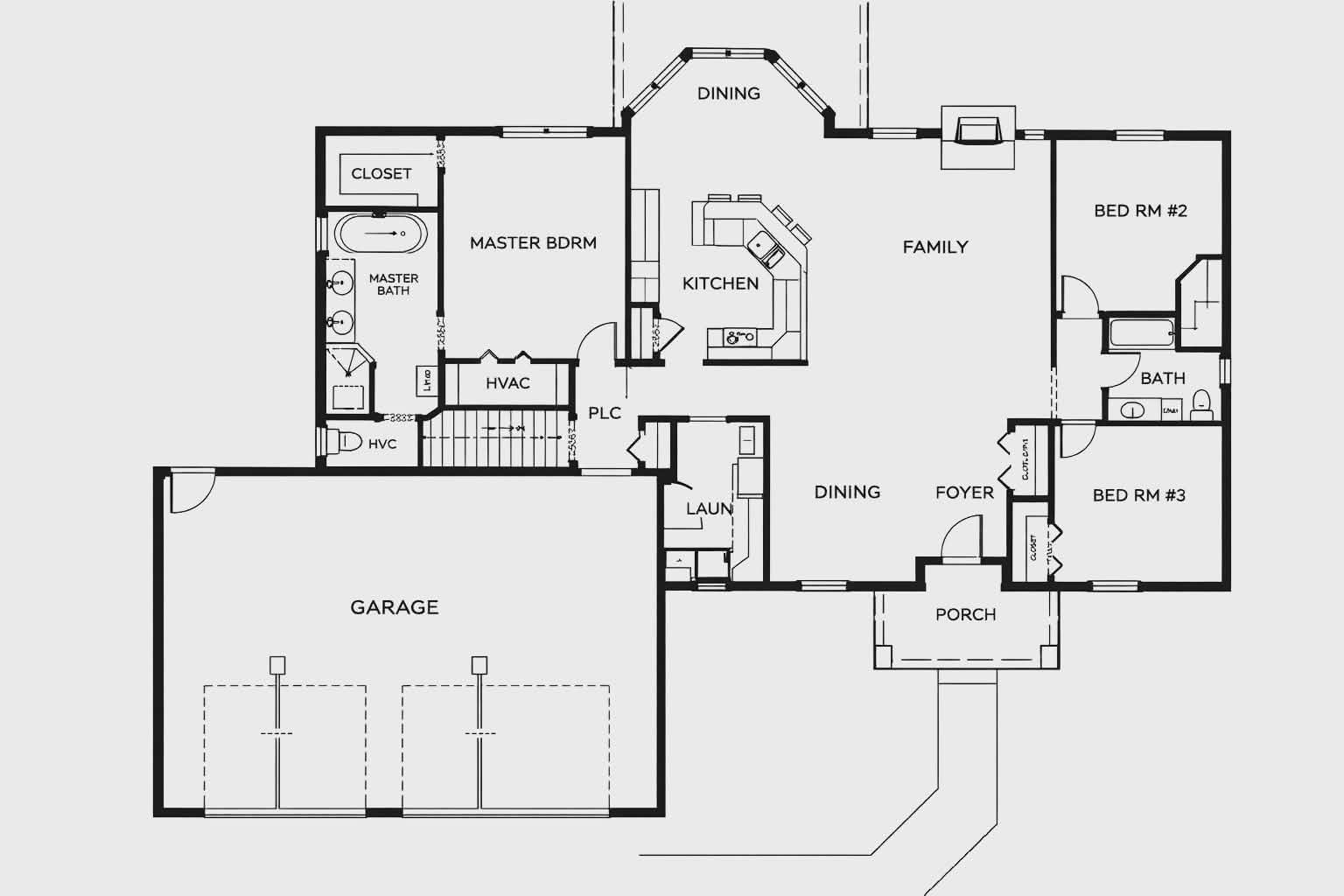

Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
Joels houses
With how much it cost to have someone draw these hope to save someone a little money. please enjoy
