| First floor | 900 |
| Total heated | 900 |
| Width | 25' 0" |
| Depth | 40' 0" |
| Height | 10' 0" |
| Main roof pitch | 4/12 |
| Main level | 12' 0" |
| 2nd level | 12' 0" |
| Stories | 1 |
| Bedroom | 2 |
| Bathrooms | 2 |
| Garage spaces | 0 |
1000 Sq.Ft. West-Facing 2 BHK House Plan (25' × 40' Plot)
A thoughtfully designed 1000 sq.ft. west-facing residential house plan suitable for small to medium-sized families. The layout efficiently utilizes space while ensuring proper ventilation, natural lighting, and comfortable living.
Key Features:
Plot Size: 25' × 40' (92.90 Sq.M)
Built-up Area: 900 Sq.Ft. (83.61 Sq.M)
West-Facing Design
Spacious Living Hall
2 Comfortable Bedrooms
Well-Planned Kitchen
Common Bathroom & WC
Utility Area
Dedicated Parking Space
Staircase Provision
Modern Front Elevation
Complete Architectural Drawing Set
Drawing Package Includes:

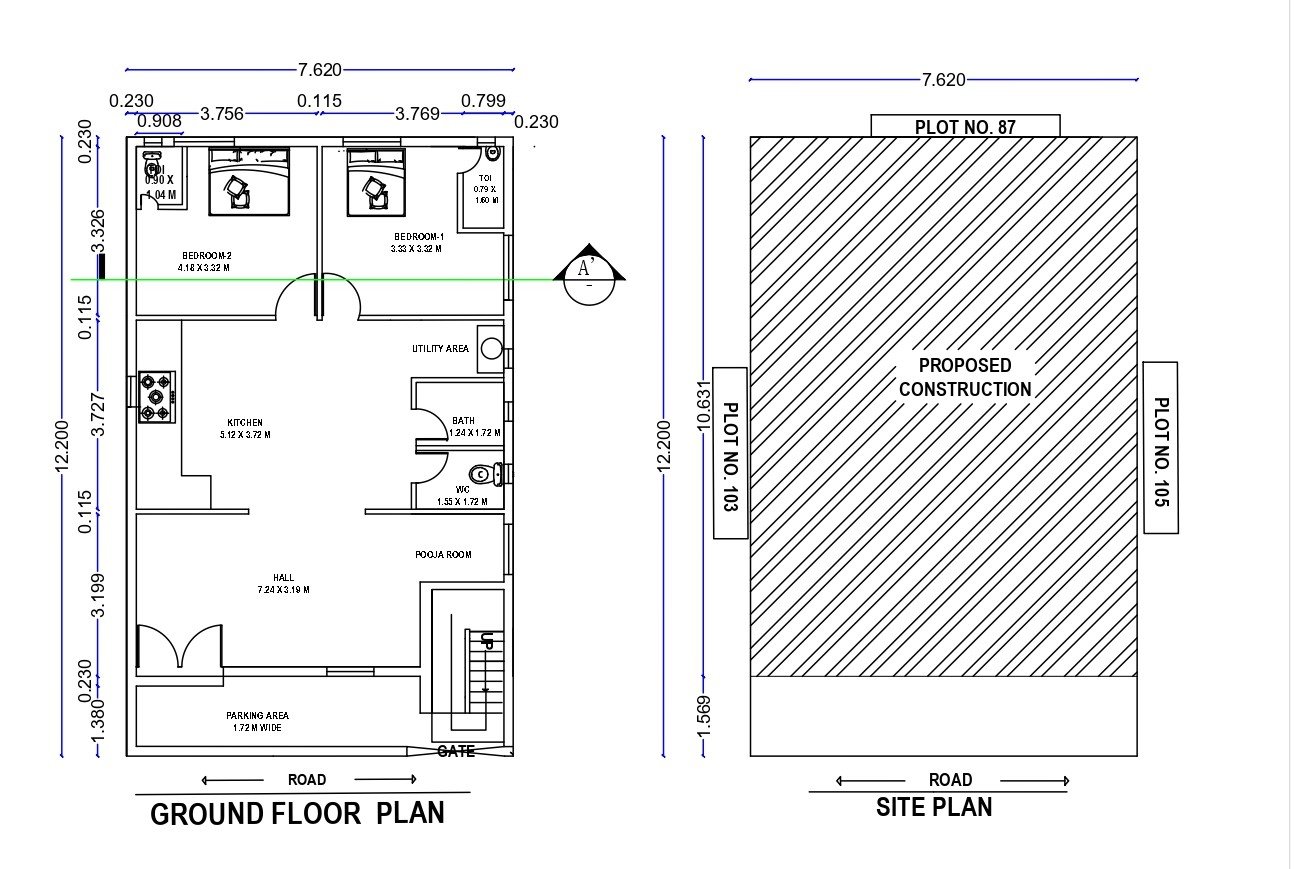

✔ Ground Floor Plan
✔ Site Plan
✔ Front Elevation
✔ Section AA'
✔ Door & Window Schedule
✔ Rainwater Harvesting Details
✔ Solar System Layout
✔ 2D Front elevation
✔ 3D Different sides elevation
Ideal for residential construction, municipal approval, and construction planning.
| Architectural Styles | Country, Traditional |
| Structure type | Single family home |
| Bedroom Features | Two master suites |
| Kitchen Features | Country kitchen |
| Additional Room Features | Unfinished space |
| Garage Features | Front entry |
| Outdoor spaces | Breezeway |
| Lot characteristics | Zero lot lines |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Interior elevations
These drawings show a suggested layout design of cabinets, utility rooms, fireplaces, built-ins and other interior features depending on the complexity of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
This page gives you an overview of typical sections and details of the foundation. Every home has its own specific foundation requirements. You will need to verify and use the details pertinent to your home ’s foundation in addition to abiding by your local area building codes.
Cross-section details
These drawings are vertical cutaways views of your home detailing important relationships from one floor level to another, including changes in ceiling and roof heights.
