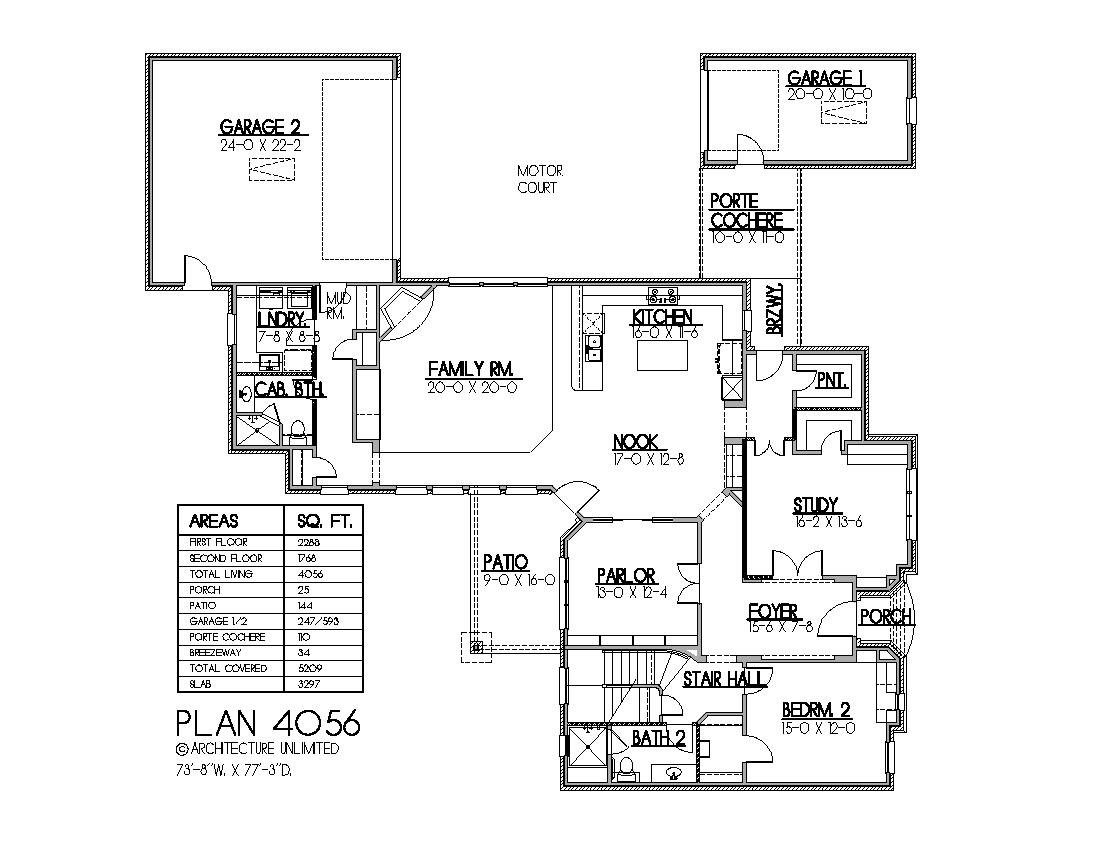

| First floor | 2288 |

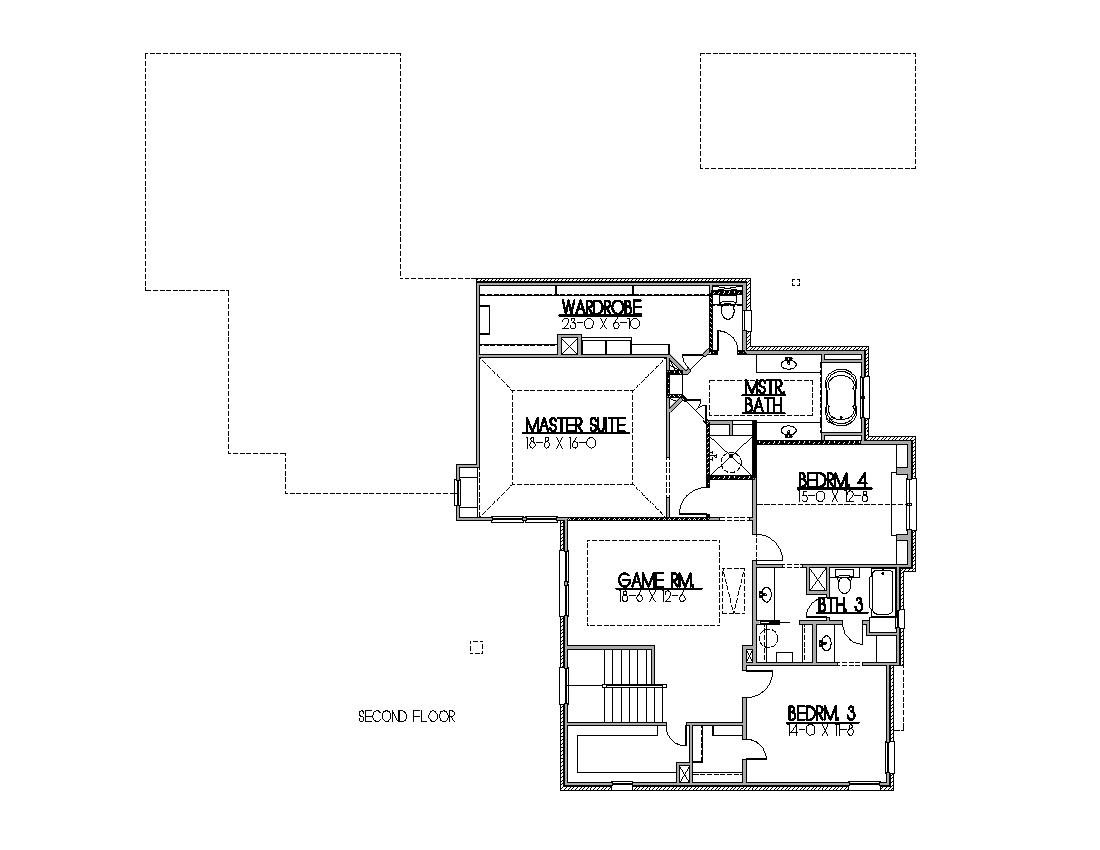

| Second floor | 1768 |
| Total heated | 4056 |
| Garage | 840 |
| Width | 73' 8" |
| Depth | 77' 3" |
| Height | 35' 0" |
| Main roof pitch | 16/12 |
| Main level | 10' 0" |
| 2nd level | 9' 0" |
| Stories | 2 |
| Bedroom | 4 |
| Bathrooms | 4+ |
| Garage spaces | 3 |
Versatile Tudor design. Foundation to be designed by a local structural engineer.
| Architectural Styles | Classical, European, Traditional, Tudor |
| Structure type | Single family home |
| Bedroom Features | Buddy bath, Split bedrooms, Guest suite, Upstairs bedrooms, Upstairs master, Walk in closet, Main floor guestroom |
| Kitchen Features | Breakfast nook, Kitchen island, Peninsula eating bar, Walk in pantry |
| Additional Room Features | Den/Office/Study, Mud room, Great/Living room, Hobby/Rec room, Library room, Main floor laundry |
| Garage Features | Front entry, Split, Port cochere |
| Outdoor spaces | Breezeway, Covered front porch, Covered rear porch |
| Lot characteristics |
Cover sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when it’s constructed and landscaped.
Floor plan(s)
Set of detailed plans for each floor, showing the room layouts, interior square footages, door/wall partitions and window sizes. Also included are suggested locations for your kitchen appliances, plumbing fixtures, electrical outlets, etc.
Exterior elevations
Front, rear, right and left side exterior elevations are shown including the exterior materials and measurements of your home.
Roof plan
Shows an overall bird ’s eye view of the roof layout, roof pitch, slopes and ridges of your roof design.
Foundation plan
Not included - to be designed by a local structural engineer
